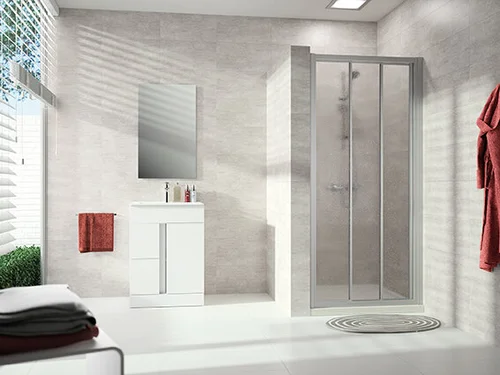

- Hüppe Alpha 2
- 1 x sliding door, 4-corner, fully framed
Product features:
- 2-part
- for installation in a recess
- for combination with Alpha 2 side panel
- Framed door with two sliding door segments
- opening to one side
- with one fixed segment
- Profiles and handle strips made of high-quality anodized aluminium
- Adjustment option in the wall profile 25mm
- In combination with side panel 20mm on handle side
- Sliding door segments can be unhooked inwards for easy cleaning
- with floor profile (height 41mm)
- Continuous magnetic strips in the handle strip for optimum door closure
- Suitable for installation on shower tray and tiled floor
- Handle: Handle strip
- installation at floor level possible
- Left and right-hand mounting
- Installation status: partially assembled
Glazing options optional:
- Glazing with 2 mm Pacific S art glass or
- 4mm toughened safety glass to DIN EN 12150
- optionally with the easy-care Hüppe Anti-Plaque surface finish (only for toughened safety glass)
Dimensions:
- Height: 2000 mm
- Adjustment range in recess: 50 mm
- Adjustment range in side panel: 45 mm
- Tray installation dimension in recess: 950-1000 mm
- Bath installation dimension in side wall: 965-1010 mm
- Width of fixed panel: 380-405 mm
- Access width: 437 mm
- for installation on tiled floor:
- Installation dimension center of glass: 950-1000 mm
- Installation dimension (center of glass) side wall: 945-990 mm
Scope of delivery:
- 2-piece sliding door, fixing material and installation instructions
- incl. HÜPPE Keder system - installation without visible screws in the area of the wall strip
Optional mounting accessories:
- For widening by 15mm for a wall rail width of 30.4mm
- the widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used.
- Please order separately!
- Installation in U-shape possible, U-cabin bracket set required.
- U-cabin bracket set not included, please order separately!
Please note:
- The specified dimensions of the shower enclosure only refer to installation on shower trays.
- For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
- A measuring and installation service is recommended for this item!
Manufacturer:
HÜPPE GmbH
Industriestraße 3
DE-26160 Bad Zwischenahn
E-mail:
hueppe@hueppe.com
