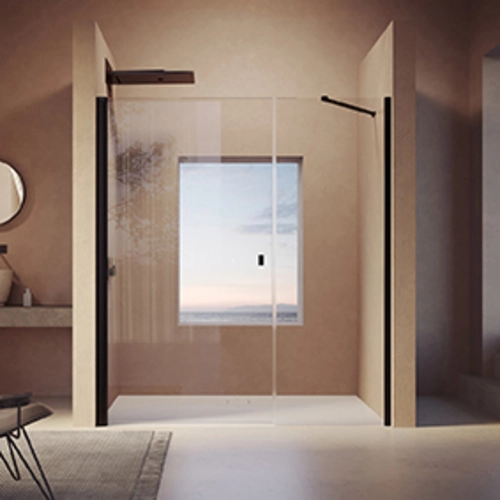

Hüppe SolvaPro
- 1x partially framed 4-corner swing door with side panel in recess, made to measure
Product features:
- Swing door with side panel
- Left attachment
- For installation in a recess
- Partially framed door with one glass panel, opening inwards and outwards, with one side panel
- Glazing with 8 mm toughened safety glass, optionally with the easy-care HÜPPE Anti-Plaque surface finish
- Profiles made of high-quality anodized aluminium, handle made of high-quality metal
- Door hinge with infinitely adjustable lifting and lowering mechanism and 5 mm lifting action
- With threshold protection strip (height 10 mm) for optimum tightness, or can be installed without thresholds
- Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip
- HU?PPE Keder system - installation without visible screws in the area of the wall strip
- With stabilizer (inside)
- Can be installed on shower tray or tiled floor
Dimensions:
- Door front width: 120.1 - 280 cm
- Height: 120 - 200 cm
- Adjustment range: - 15 / + 15 mm
Colors/finish:
- individual RAL colors available as profile color on request
- Other glass/decors available on request (gray, bronze, mirror glass, Liquid sandblast decor, Nature sandblast decor)
- Slanted cut-out possible (on request, linked with surcharge per slanted cut-out)
- Individual handle available on request from the HU?PPE range, handle only in color 092 silver high gloss
Assembly condition:
- Partly assembled
Included in the scope of delivery: Fastening material, assembly instructions
Please note:
- For production reasons, Privatima and SandPlus can only be offered up to a width of 1600 mm
The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!
