HÜPPE Classics 2

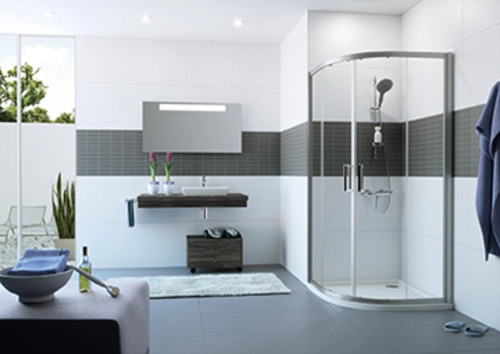

1x 1/4 circle sliding door

Glass profile

• Glazing with 6 mm (door) and 4 mm (fixed segment) toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 200cm
• Adjustment range standard 2.5 cm
• Standard bath installation dimension: 98.5 - 101 cm
• Entry width standard: 57 cm
• Radius: 50 cm
• With floor profile (height 41 mm)
• Can be installed on tiled floor and shower tray

Product features

• Partially framed quadrant shower enclosure with two sliding door segments, each opening to one side, with two fixed segments
• Left/right attachment
• Adjustment option in the 25 mm wall profile.
• Installation without visible screws in the wall profile area
• Continuous magnetic strips and sealing profiles
• Sliding door segments can be unhooked inwards for easy cleaning
• High-quality double castors with ball bearings and elegant chrome applications
• Bow handle made of high-quality chrome-plated metal
• Assembly condition: partially assembled

Scope of delivery:

• Included in delivery: Fastening material, assembly instructions

The widening profile (item no.: 141001 for 1900mm height and item no.: A21005 for 2000mm height) can be used to widen the shower enclosure by 15mm for a wall rail width of 30.4mm.
Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
