HÜPPE Classics 2 quarter circle swing door with fixed segments 2-leaf (1/2), radius: 50 cm width: 80 cm, height: 200 cm, left & right fixing

HÜPPE Classics 2

1x quarter circle pivot door with fixed segments 2-leaf (1/2)

Glass profile

• Glazing with 6 mm toughened safety glass ESG
• Profiles made of high-quality anodized aluminium

Dimensions

• Height 200cm
• Tub installation dimension standard: 78.5 - 80 cm
• Entry width standard: 63 cm
• Fixed segments: 28 - 29.5 cm
• Radius: 50 cm
• Adjustment range standard 1.5 cm
• Can be installed on tiled floor and shower tray

Product features

• Partially framed quadrant shower enclosure with two glass panels, opening inwards and outwards, with two fixed segments
• Left/right mounting
• Adjustment option in 15 mm wall profile
• Installation without visible screws in the wall profile area
• Continuous magnetic strips and sealing profiles, as well as water-repellent horizontal sealing strip

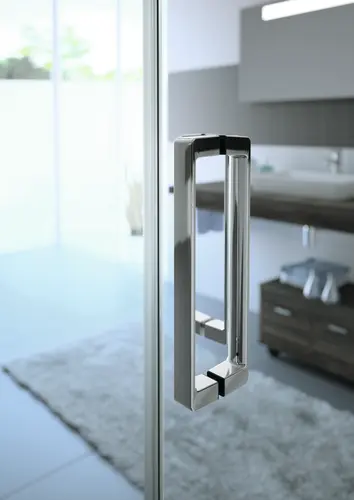

• Bow handle made of high-quality chrome-plated metal
• Installation condition: partially assembled

Scope of delivery:

• Included in delivery: Fastening material, assembly instructions

The widening profile (item no.: 178003 for 1900mm height or item no.: 178007 for 2000mm height) can be used to widen a door by 15mm.
Please order separately!

The specified dimensions of the shower enclosure only refer to installation on shower trays. For floor-level installation, the dimensions differ, please specify the exact dimensions of the shower area before ordering!

A measuring and installation service is recommended for this item!
